High Quality





Chinsor is a leading manufacturer of high-quality spare parts for AMAT Centura 5200 and Endura 5500 systems. With our state-of-the-art facilities, cutting-edge technology, and experienced technicians, we provide superior quality and reliable spare parts for your semiconductor equipment.We perform strictly according to the ISO9001 quality system in the whole process.



Why Choose Us

Professional team

Chinsor has a team master the core technology in this filed. Dedicated to supply of semiconductor flm physical deposition, chemical deposition and etching of precision parts, focusing on precision machining and parts surface treatment.

Rich experience

We are well talented in precise manufacturing of metal parts and fragile material parts for semiconductor trade. We have professional production lines and workers. Metals include aluminum, stainless steel and fragile materials include ceramic, quartz and silicon.

Our Certificates

Chinsor has been certified as Jiangsu new high-tech enterprise, Wuxi Technical Center, Jiangsu SMEs and so on.

Competitive Price

Manufacturer place your order directly to the factory, no intermediate cost, more fast delivery, better service and economical cost.



What is Semiconductor PVD CVD ETCH Metal Parts


A Semiconductor PVD CVD ETCH Metal Parts is a material that has an electrical conductivity value falling between that of a conductor, such as copper, and an insulator, such as glass. Its resistivity generally falls as its temperature rises; metals behave in the opposite way.[1] In many cases their conducting properties may be altered in useful ways by introducing impurities ("doping") into the crystal structure. When two differently doped regions exist in the same crystal, a semiconductor junction is created. The behavior of charge carriers, which include electrons, ions, and electron holes, at these junctions is the basis of diodes, transistors, and most modern electronics. Some examples of semiconductors are silicon, germanium, gallium arsenide, and elements near the so-called "metalloid staircase" on the periodic table. After silicon, gallium arsenide is the second-most common semiconductor and is used in laser diodes, solar cells, microwave-frequency integrated circuits, and others. Silicon is a critical element for fabricating most electronic circuits.



First 1234567 Last

Benefits of Semiconductor PVD CVD ETCH Metal Parts





No Filaments
One of the advantages of Semiconductor PVD CVD ETCH Metal Partss is the absence of filaments. As Semiconductor PVD CVD ETCH Metal Parts do not have filaments, they do not want to be heated to emit electrons. This is a huge advantage when compared to vacuum diodes.



Can Be Operated Immediately
Another advantage of Semiconductor PVD CVD ETCH Metal Parts is their possibility to be operated immediately after switching on the circuit device. The main reason behind this capability is the fact that Semiconductor PVD CVD ETCH Metal Parts do not require to be heated up.



Compact And Portable
If you have seen a semiconductor, one of the most evident characteristics of them is its size. Usually, Semiconductor PVD CVD ETCH Metal Parts are small in size, and thus, the circuits with Semiconductor PVD CVD ETCH Metal Parts are also compact and highly portable. The semiconductors being light in weight is also another advantage. Moreover, due to their compactness, Semiconductor PVD CVD ETCH Metal Parts occupy only a small space and use less power.



Longer Lifespan And Less Expensive
When compared to vacuum diodes, Semiconductor PVD CVD ETCH Metal Partss have a longer lifespan. Nonetheless, using semiconductors is more cost-effective as these are not very expensive.



No Unnecessary Sounds
Another advantage of Semiconductor PVD CVD ETCH Metal Parts is that they do not produce any sort of humming sound while it is operating, unlike vacuum diodes.



Low Operating Voltage
When observing the advantages of Semiconductor PVD CVD ETCH Metal Parts, we cannot forget the amount of voltage that should be provided for a semiconductor to function. Semiconductor PVD CVD ETCH Metal Parts do not consume a high voltage for them to operate. This is indeed a massive plus point!



Application of Semiconductor PVD CVD ETCH Metal Parts

Computing
The Semiconductor PVD CVD ETCH Metal Parts industry produces microprocessors and memory chips, which are the primary components in computers, servers, and data centers. These devices are used in various industries, from finance and healthcare to manufacturing and logistics.



Communications
Semiconductor PVD CVD ETCH Metal Parts are used to produce cell phones, satellite systems, and other communication devices. They are also used to create wireless communication systems, network equipment, and other hardware for data transmission.



Energy
Semiconductor PVD CVD ETCH Metal Parts are used in the production of solar cells and other renewable energy systems. Power management applications also use semiconductors, including voltage regulators and power supplies.



Automotive
Automotive electronics also use Semiconductor PVD CVD ETCH Metal Parts, including engine control units, sensors, and safety systems. They are also used in electric vehicles and autonomous vehicles.



Healthcare
Medical imaging, monitoring, and diagnostic equipment, as well as medical implants and devices, use semiconductors.



Metals Used in Semiconductor PVD CVD ETCH Metal Parts Chips
0040-02544 Upper Body, DPS Metal 2nd Source New
0040-02938 GAS MANIFOLD OUTPUT 200MM TXZ
0020-18273 Body,Throttle Valve Hdp.cvd
0040-02938 GAS MANIFOLD OUTPUT 200MM TXZ

Gallium and Arsenic
Given that high-speed devices have become state-of-the-art Technology, let us construct the necessary building blocks to support them.These two elements are crystal gallium and arsenic, which, when bonded, form a product called gallium arsenide (GaAs), essential in developing superior electronic circuits. Before we go to that, let's look at the advantages of Gallium arsenide over silicon, which includes high-frequency operations such as microwave and millimeter-wave devices and optoelectronics such as LEDs and solar cells. The above properties show clearly that GaAs have the potential for higher speeds and low voltages, making them suitable in the manufacturing of special types of semiconductor chips, especially in wireless communication systems.



Copper
Counted among electronics essentials, these materials form the backbone of the conductive circuits. Copper is another important material used in semiconductor technology, and it makes the path or circuits within the chip. Due to its high electrical conductivity, accompanied by affordability compared to noble metals and good conductivity, copper is suitable for interconnects that connect different parts of a chip. The incorporation of copper in semiconductor chips has improved the efficiency of electronics by improving the speed of data transfer and the power supply.



Gold
Due to its high conductivity and lack of susceptibility to oxidation, gold is often employed to enhance the dependability of contact areas within semiconductor dies. This is quite important, especially in cases of high-end chips in which the connections have to be strong and lasting. A kind of gold used much in wire bonding is where thin gold wires join the chip to its packages. Even though gold is a pricey material compared to other conductive materials, the performance difference is enough to ensure the use of gold conductive material in areas where reliability is paramount.



Silver
Out of all the applications, silver is the principal one used in the conductive adhesives that are utilized for chip Packaging. These adhesives can be essential to ensure that the chip's electric and thermal connection is to its substrate. Silver's properties include high thermal and electric conductivity, making it suitable for use in this application. Also, silver-containing epoxy pitch adhesives play a vital role in thermal management to counter heat produced by the chip while in use, also aiding in maintaining the high efficiency of the chip without failure, such as overheating.



How to Choose Semiconductor PVD CVD ETCH Metal Parts



Select Versatile Vendor
When it comes to semiconductor manufacturing equipment, versatility is of utmost importance. Partnering with a semiconductor equipment manufacturer such as Modutek that caters to multiple applications, ensures compatibility with various chemicals used across multiple processes. This adaptability is crucial when seeking equipment that can handle multiple processes. Partnering with a versatile vendor translates to smooth operations, increased chemical compatibility, and seamless integration into existing processes.



Stay Ahead with the Latest Technology
Investing in cutting-edge tech ensures precision and flexibility in an ever-evolving semiconductor landscape. Modern equipment utilizing the latest advancements helps support diverse chemical and material compatibility. This is important for R&D professionals striving for exact results in dynamic experiments. Prioritizing contemporary technology puts you at the forefront of innovation while guaranteeing efficiency and adaptability in operations.



Prioritize Safety
Safety should never be compromised in semiconductor manufacturing. Selecting equipment with advanced safety features that adhere to stringent standards is essential to creating a risk-minimized environment. By choosing products that prioritize safety, you ensure the well-being of staff and the integrity of processes, building trust and confidence in the operation of the equipment.



Onsite Repair with Excellent Customer Service
Downtime can be expensive. Choose companies offering robust onsite repair with excellent customer service to minimize disruptions and ensure reliable service plans explicitly tailored to meet your needs. Choosing a provider dedicated to quick resolutions and excellent support protects your operations against extended interruptions while maintaining productivity and trust in your equipment’s longevity.



Explore a Well-Defined Product Line
A diverse product line speaks to a company’s adaptability and expertise. Familiarizing oneself with a range of offerings ensures solutions that meet technical and budgetary requirements. Whether meeting specific experimental needs or balancing budgetary concerns, a well-defined product portfolio provides flexibility and assurance, enabling informed choices tailored to individual requirements.



Uncompromising Technical Support
Technical glitches are inevitable, so responsive support from your equipment supplier should never be left up for discussion. Ensure your equipment supplier offers top-notch tech support, from troubleshooting to upgrades.This commitment ensures reliability, high uptime, and peace of mind so that any challenge will be swiftly addressed to maintain the integrity and continuity of operations.

Process of Semiconductor PVD CVD ETCH Metal Parts



Cleaning

The silicon wafers forming the base of the semiconductor are cleaned. Even slight contamination of a wafer will cause defects in the circuit. Therefore, chemical agents are used to remove all contamination, from ultra-fine particles to minute amounts of organic or metallic residues generated in the production process, or unwanted natural oxide layers generated due to exposure to air.

Film Deposition

Thin film layers of silicon oxide, aluminum and other metals that will become the circuit materials are formed on the wafer. There are a variety of ways to form these thin films, including "sputtering", in which a target material, such as aluminum or other metal, is bombarded with ions, which knocks off atoms and molecules that are then deposited on the wafer surface, "electrodeposition", which is used to form copper wire layers (copper interconnect), chemical vapor deposition (CVD), in which special gases are mixed to cause a chemical reaction that forms a vapor containing the desired material, and then the mole-cules generated in the reaction are deposited onto the wafer surface to form a film, and thermal oxidation, in which the wafer is heated to form a silicon oxide film on the wafer surface.

Post-deposition Cleaning

Minute particles adhering to the wafer after the film deposition are removed using brushes or Nanospray with deionized water, or other physical cleaning methods.

Exposure

The wafer is exposed using short wavelength deep ultraviolet radiation projected through a mask on which the circuit pattern has been formed. Only the areas of the resist layer that are exposed to the light undergo a structural change, thereby transferring the pattern to the wafer. There are a variety of exposure units, including steppers, which expose several chips at a time, and scanners, which expose the wafer using a slit through which light is projected onto the wafer.

Development

Developer is sprayed onto the wafer, dissolving the areas exposed to the light and revealing the thin film on the wafer surface. The remain-ing resist areas that are not exposed at this point become the mask for the next etching process, and that resist pattern becomes the pattern on the layer below.

Etching

In wet etching, the exposed thin film on the surface layer is dissolved using chemicals, such as hydrofluoric acid or phosphoric acid, and removed. This forms the pattern. There is also a dry etching method in which the wafer surface is bombarded with ionized atoms to remove the film layer.

Activation

Heat processing is performed using flash lamps or laser radiation to activate the doped ions implanted in the wafer. Instantaneous activation is required to create the micro transistors on the substrate.



Whether you need a single spare part or complete spare parts package, we can customize a solution to meet your specific needs and budget.



Thank you for choosing Chinsor. We look forward to serving you and helping you achieve your semiconductor manufacturing goals.

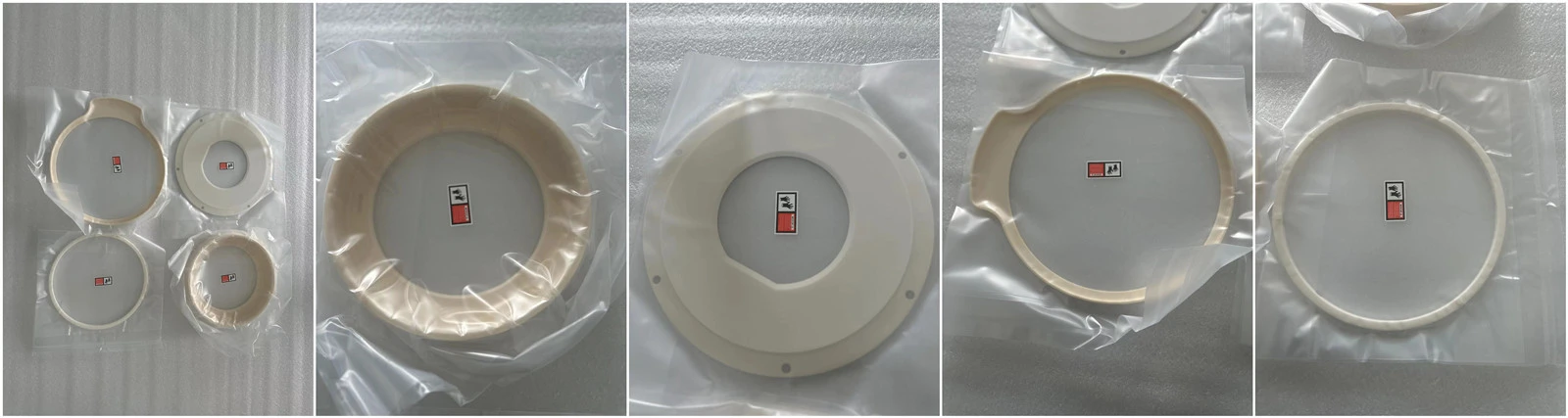

Ceramic Parts

We produce process kits for process DXZ, CXZ, HDP and etc.

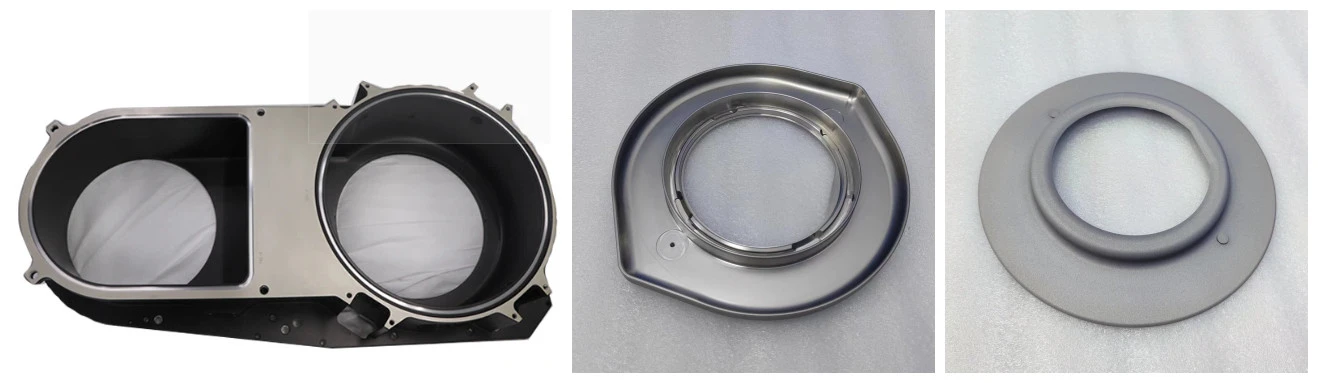

Surface Treatment



Chinsor is a company that specializes in metal surface treatment. We provide various types of surface treatment options such as chemical cleaning, blackening, anodizing, and sandblasting. Each process has its own unique benefits and applications. Here is a breakdown of the different processes involved in Chinsor's surface treatment services:



Chemical cleaning: This process involves the use of chemicals to remove impurities, rust, and other contaminants from the metal surface. The metal is submerged in a chemical bath for a specified amount of time until the desired level of cleaning is achieved.



Blackening: Blackening is a process that involves the formation of a black oxide layer on the surface of the metal. The process is achieved through the use of chemicals that react with the metal surface. The result is a black, non-reflective surface that provides excellent corrosion resistance.



Anodizing: Anodizing is a process that involves the formation of an oxide layer on the surface of the metal. This oxide layer is created through an electrochemical process that converts the surface layer of the metal into an oxide coating. Anodizing provides excellent corrosion resistance, and the surface can be dyed to achieve a desired color.



Sandblasting: Sandblasting is a process that involves the use of compressed air to blast abrasive material onto the surface of the metal. This process removes surface contaminants, rust, and other imperfections. The result is a clean, uniform surface that provides better adhesion for subsequent coatings or finishes.

Chinsor utilizes these processes to provide our customers with high-quality metal surface treatment services. Each process has its own unique benefits, and the process used depends on the desired outcome. With Chinsor's expertise, we can help clients choose the best process to achieve the desired result for our specific application.




Our Process of Export


Exporting goods is a complex process that involves several stages, including customs clearance and shipping. Here is a brief overview of the export process for Chinsor.

01/

Receiving an Order

The first step in the export process is to receive an order from a foreign buyer. The exporter must review the terms and conditions of the sale, including the price, delivery terms, and payment method.

02/

Preparing and Packing the Goods

Once the order is confirmed, the exporter must prepare the goods for shipment. This includes packaging and labeling the products appropriately, as well as securing any necessary permits or certificates.

03/

Applying for an Export License

Some products require an export license from the government before we can be shipped overseas. The exporter must check the regulations for our specific industry and apply for any necessary licenses.

04/

Arranging Transportation

The exporter must arrange for transportation of the goods from our location to the port or airport of departure. This includes selecting a carrier and obtaining any required transportation documentation.

05/

Preparing Customs Documents

Before the goods can be shipped, the exporter must prepare the necessary customs documents. This includes a commercial invoice, packing list, bill of lading, and any additional documents required by the destination country.

06/

Custom Clearance

Customs clearance is the process of getting the necessary clearance to export the goods from the country of origin. This process can vary depending on the country and its regulatory requirements.

07/

Shipping the Goods

Once the goods are cleared for export, we can be loaded onto the designated carrier for shipment. The exporter must ensure that the products are secured for transport and comply with all applicable regulations.

08/

Receiving Payment

Once the goods have been shipped and delivered to the buyer, the exporter must receive payment. This is typically done through a letter of credit or other agreed-upon payment method.



In conclusion, exporting goods requires careful planning and execution, including document preparation, transportation arrangements, and customs clearance. By following the proper procedures and regulations, an exporter can ensure that our products are delivered safely and efficiently to our intended destination.







Our Factory



Chinsor has a team master the core technology in this filed. Dedicated to supply of semiconductor flm physical deposition, chemical deposition and etching of precision parts, focusing on precision machining and parts surface treatment. We provides 2nd source new parts of PVD, CVD, ETCH field.We are well talented in precise manufacturing of metal parts and fragile material parts for semiconductor trade. We have professional production lines and workers. Metals include aluminum, stainless steel and fragile materials include ceramic, quartz and silicon.





certificate



With 6 years of experience in the industry, we understand the importance of timeliness and reliability. Therefore, we work hard to provide fast and efficient delivery of your spare parts, allowing you to minimize downtime and maximize productivity.

At our manufacturing facility, we take pride in our commitment to quality and customer satisfaction. If you have any questions about our products or need help finding the right spare part for your equipment, our dedicated customer service team is always ready to assist you.

We offer a wide range of AMAT Centura 5200 and Endura 5500 spare parts, including but not limited to:

- Gas lines and fittings

- Heater and thermocouple assemblies

- Electrostatic chucks and clamps

- Valves

- Chambers



productcate-371-526                productcate-371-526



FAQ



Q: What is the smallest feature size currently achievable in semiconductor manufacturing?

A: As of 2023, the smallest feature sizes in commercial semiconductor manufacturing are approximately 5 nanometers, although research and development for smaller nodes are ongoing.

Q: Why is ultra-pure water important in semiconductor manufacturing?

A: Ultra-pure water is used extensively in the semiconductor manufacturing process for cleaning silicon wafers and various other tasks. It is important that the water is ultra-pure to avoid introducing contaminants onto the wafer surface, which could result in defects and lower the yield of good chips.

Q: Why are new transistor designs like FinFETs and nanowire transistors necessary?

A: As transistor dimensions shrink, traditional planar (flat) transistor designs suffer from a number of problems, including increased leakage current and difficulties in controlling the flow of current. New transistor designs like FinFETs and nanowire transistors have 3D structures that help mitigate these problems, allowing for continued device miniaturization.

Q: How does quantum computing fit into the future of semiconductors?

A: Quantum computing is a potential future direction for semiconductors and computing in general. It represents a radical departure from traditional computing, utilizing the principles of quantum mechanics to perform computations. It is currently at the experimental stage, with numerous technical challenges to be overcome before it can become a viable commercial technology.

Q: What are the parts of a semiconductor?

A: A semiconductor device is an electronic component that relies on the electronic properties of a semiconductor material (primarily silicon, germanium, and gallium arsenide, as well as organic semiconductors) for its function. Its conductivity lies between conductors and insulators.

Q: What is a metal semiconductor metal structure?

A: A metal–semiconductor–metal photodetector (MSM detector) is a photodetector device containing two Schottky contacts, i.e., two metallic electrodes on a semiconductor material, in contrast to a p–n junction as in a photodiode. It is thus a kind of Schottky barrier detector, but with two Schottky junctions.

Q: What are the metal layers in a semiconductor chip?

A: The three layers metal, oxide and silicon are placed one on top of the other, this explains the name: metal oxide silicon which is short ened to MOS. Some give the term MOS the following meaning : metal oxide semiconductor.

Q: What are the raw materials for semiconductors?

A: Semiconductors use raw materials like silicon, germanium, metals, gallium arsenide, etc. These are important to the survival of modern life since it is a crucial element for most electronic devices. These include laptops, computers, medical equipment, mobiles, even watches and cars.

Q: What material is semiconductor structure?

A: The most common semiconducting materials are crystalline solids, but amorphous and liquid semiconductors are also known. These include hydrogenated amorphous silicon and mixtures of arsenic, selenium, and tellurium in a variety of proportions.

Q: What is the most basic component of a semiconductor chip?

A: Silicon is the material of choice in the chip industry. Unlike the metals normally used to conduct electrical currents, silicon is a 'semiconductor', meaning that its conductive properties can be increased by mixing it with other materials such as phosphorus or boron.

Q: What are the components to make semiconductors?

A: Semiconductors are made from a variety of raw materials, including silicon, germanium, gallium arsenide, and indium phosphide. These materials are processed and purified to create a crystalline structure, which forms the foundation for building semiconductor devices such as transistors, diodes, and integrated circuits.

Q: Why is aluminum used in semiconductors?

A: Aluminum is the most common material for metal interconnects in semiconductor chips. The metal adheres well to the oxide layer (silicon dioxide) and is easily workable. That said, aluminum (Al) and silicon (Si) tend to mix when they meet.

Q: What is the difference between a semi metal and a semiconductor?

A: A semimetal also differs from an insulator or semiconductor in that a semimetal's conductivity is always non-zero, whereas a semiconductor has zero conductivity at zero temperature and insulators have zero conductivity even at ambient temperatures (due to a wider band gap).

Q: What makes a metal a semiconductor?

A: Semiconductors have electrical conductivities intermediate between those of insulators and metals. The electrical conductivity of semiconductors increases rapidly with increasing temperature, whereas the electrical conductivity of metals decreases slowly with increasing temperature.

Q: Are semiconductors a metal or nonmetal?

A: Metals
Answer and Explanation:Metals are conductors and non-metals are insulators, whereas metalloids have properties in between metals and non-metals. Metalloids are neither good conductors nor poor conductors, so semiconductors usually are metalloids and their properties can be modified by doping.

Q: What rare metals are used in microchips?

A: Gallium and germanium are used in small but often necessary amounts in certain types of high-end fiber optics, solar cells and most critically, in microchips used for quantum computing, telecommunications, electric vehicles, defense, and an array of other mission critical applications.

Q: What are the critical minerals in semiconductors?

A: Lithium, cobalt, and high-purity nickel, used in energy storage technologies; Platinum group metals used in catalysts for automotive, chemical, fuel cell, and green hydrogen products; and. Gallium and germanium used in semiconductors.

Q: What is the raw material of a semiconductor?

A: The semiconductors inside computer chips are made from raw materials like silicon, germanium, phosphorus, boron, indium phosphide and gallium. Without these substances, the world as we know it would look very different — there would be no smartphones or laptops, no rockets or electric cars.

Q: What metal is used in semiconductor chips?

A: The Semiconductor Manufacturing Process: Metal Deposition. The usual metals used to create conductive layers on a device are aluminum, gold and tungsten, but the holy grail of the semiconductor industry has always been copper.

Q: Why are semiconductors preferred over metals?

A: Due to its controlled nature we prefer semiconductor … The current in the Electronics circuit is too small in the range of milliamperes with a voltage difference of around 3V, 5V or max 24 V. The resistance of metals is too high for such a small amount of current.

As one of the leading metal parts suppliers in China, we warmly welcome you to buy high-grade metal parts in stock here from our factory. All our products are with high quality and competitive price. Contact us for quotation.

0040 09893 Chamber Body R2 Edges Gas Feed 2nd Source New, 0020 33806 Upper Chamber Dps Poly 2nd Source New, 0040 79912 Liner Chamber Wleak Check Port 300mm Emax 2nd Source New
